Mobile Metal Analyzer
Get the power of a lab-grade OES spectrometer on wheels. Our Mobile Metal Analyzers are designed for steel yards, pipelines, petrochemical plants, and scrapyards where bringing the analyzer to the sample is the only option. Equipped with flexible fiber-optic probes and long-life batteries, it makes PMI (Positive Material Identification) fast and easy.
Available Models & Configurations

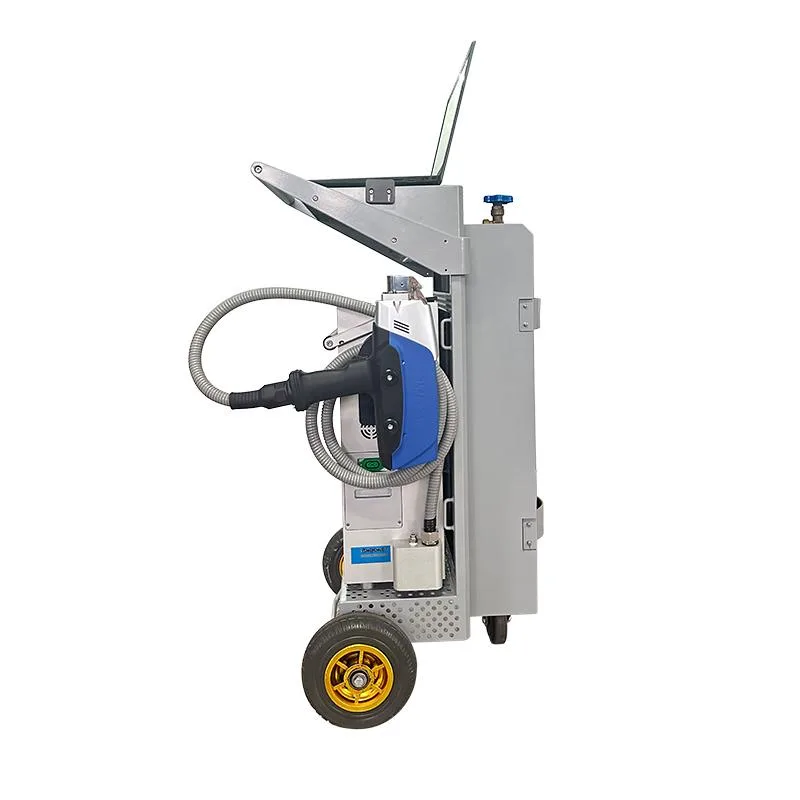

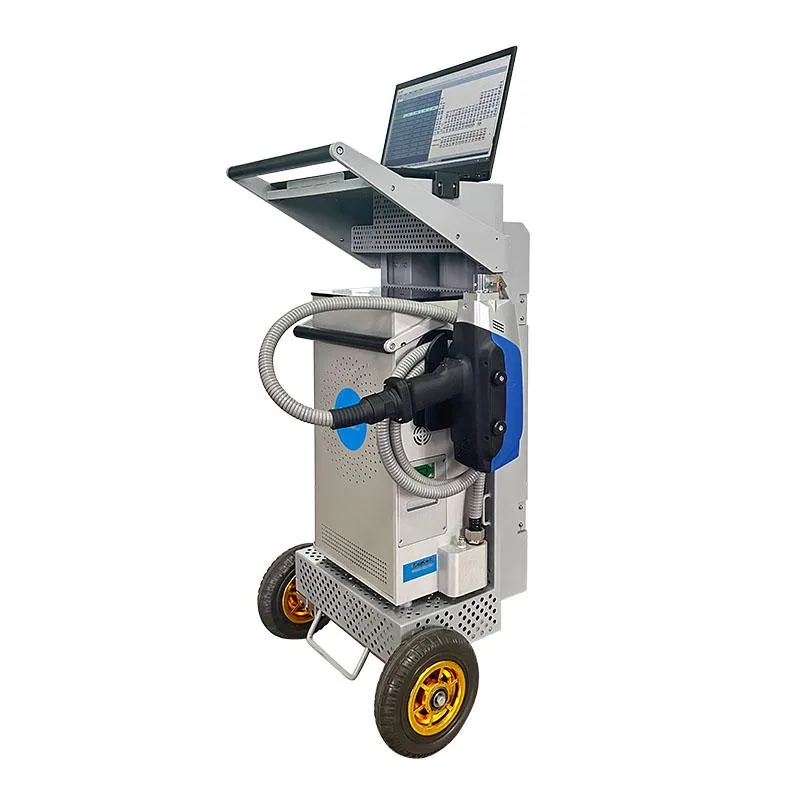

Model SP6
Ultra-mobile PMI analyzer with spark probe
The SP6 is a top-tier mobile analyzer offering rapid steel sorting and carbon analysis in the field. It features a lightweight hand probe, high-brightness touchscreen, and intuitive grade database matching.
Industry Applications
PMI (Positive Material Identification)
Fully qualified calibrations and specialized adapters available.
Steel Stockyard Sorting & Checking
Fully qualified calibrations and specialized adapters available.
Pipeline Quality Assurance & Welding Inspection
Fully qualified calibrations and specialized adapters available.
Petrochemical Plant Maintenance Verification
Fully qualified calibrations and specialized adapters available.
Large-scale Scrap Recycling Operations
Fully qualified calibrations and specialized adapters available.
Benefits & Advantages
Maximum Precision
Achieve sub-ppm detection limits ensuring top-tier quality control for critical metallurgical processes.
Rapid Results
Obtain full elemental composition within seconds, drastically reducing production downtime.
Robust Reliability
Engineered for 24/7 continuous operation in harsh industrial environments with minimal maintenance.
Cost Efficiency
Low gas consumption and optimized standby modes significantly lower the total cost of ownership.
Additional Resources
Downloads
Warranty & Support
2 Years Standard Industry Warranty
Certifications
Technical Specifications
Compare parameters for the selected model.
| Parameter | Specification Detail |
|---|---|
| Optical System | |
| Optical Structure | Ruggedized flat-field spectrometer system |
| Wavelength Range | 170nm - 670nm |
| Detector Type | High-durability linear CCD array |
| Probe & Cable | |
| Standard Cable Length | 3 meters (Optional 5 meters) |
| Probe Types | Spark probe (argon purged) or Arc probe (air) |
| Power & Battery | |
| Battery Type | High-capacity LiFePO4 battery pack |
| Battery Life | Up to 500 spark analyses per charge |
| Power Supply | 110V/220V AC charging (usable during charging) |
| Physical | |
| Dimensions | 620mm (L) x 410mm (W) x 480mm (H) |
| Weight | Approx. 32 kg (excluding trolley) |
| Operating Temperature | -10°C to 45°C |
