XRF Spectrometer
Energy Dispersive X-ray Fluorescence (EDXRF) benchtop spectrometers are perfect for laboratory research and production QC. Delivering rapid chemical composition verification for solids, liquids, and powders, EDXRF bridges the gap between handheld point-and-shoot analysis and large scale OES labs.
Available Models & Configurations

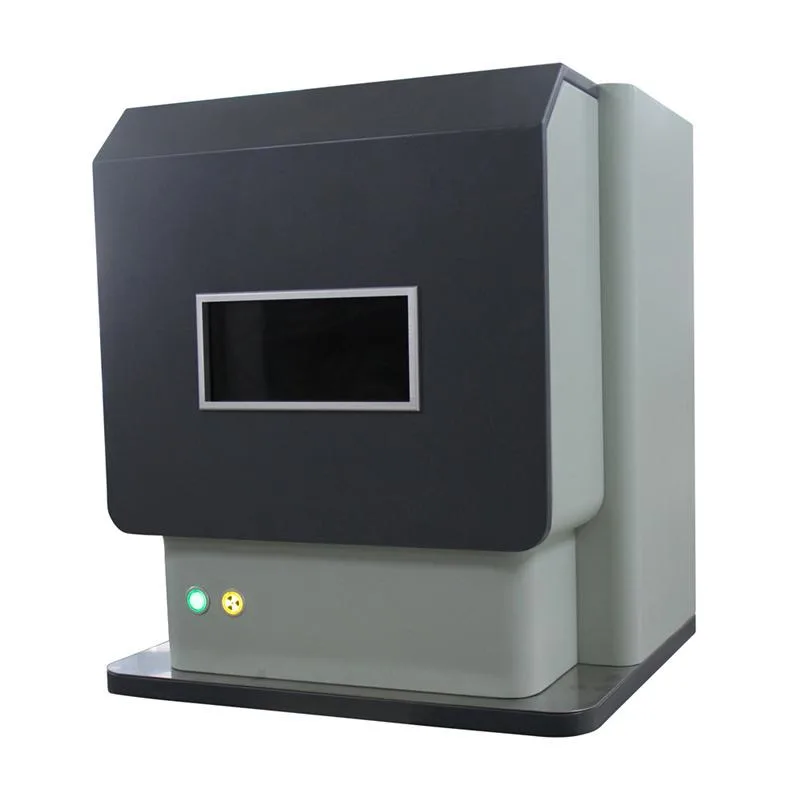

Model TY-9800
Advanced research-grade desktop EDXRF system
Our top-of-the-line desktop EDXRF system featuring a high-flux 50W X-ray tube and large area SDD detector. The system supports full vacuum sample chamber operation to analyze light elements (F to Mg) with outstanding sensitivity.
Model P9800
Heavy metal and RoHS screening desktop spectrometer
Specifically calibrated for RoHS (Lead, Cadmium, Mercury, Chromium, Bromine) screening and heavy metals testing in consumer goods, plastics, and electronics.
Model JXT-6800
Compact precious metals & gold purity analyzer
Widely used in jewelry stores, pawnshops, and refineries for non-destructive karats evaluation (Au, Ag, Pt, Pd, Cu, Zn). Points out gold coatings and under-karat items instantly.
Model JXT6
Industrial plating thickness and alloy composition analyzer
Designed for plating line thickness analysis. Measures multi-layer platings (e.g., Gold over Nickel over Copper) on PCB boards, screws, electrical connectors, and auto parts.
Industry Applications
Cement and Construction Raw Material Verification
Fully qualified calibrations and specialized adapters available.
Mining Exploration & Mineral Concentration Testing
Fully qualified calibrations and specialized adapters available.
Petrochemical sulfur-in-oil testing (ASTM D4294 compliance)
Fully qualified calibrations and specialized adapters available.
Automotive Catalyst Recycling and Reclamation
Fully qualified calibrations and specialized adapters available.
Plating and Metal Coating Thickness Determination
Fully qualified calibrations and specialized adapters available.
Benefits & Advantages
Maximum Precision
Achieve sub-ppm detection limits ensuring top-tier quality control for critical metallurgical processes.
Rapid Results
Obtain full elemental composition within seconds, drastically reducing production downtime.
Robust Reliability
Engineered for 24/7 continuous operation in harsh industrial environments with minimal maintenance.
Cost Efficiency
Low gas consumption and optimized standby modes significantly lower the total cost of ownership.
Additional Resources
Downloads
Warranty & Support
2 Years Standard Industry Warranty
Certifications
Technical Specifications
Compare parameters for the selected model.
| Parameter | Specification Detail |
|---|---|
| Excitation System | |
| X-Ray Tube | 50W high-power Rhodium (Rh) target tube |
| Voltage | 5kV - 50kV adjustable |
| Filters | 8 positions automatic filter wheel |
| Detection System | |
| Detector Type | Thermoelectrically cooled Fast-SDD detector |
| Active Area | 25 mm² |
| Resolution | < 129 eV FWHM at 5.9 keV |
| Sample Chamber | |
| Chamber Type | Large vacuum chamber (air, vacuum, or helium atmosphere) |
| Sample Changer | 10-position or 12-position motor driven carousel |
| Physical | |
| Dimensions | 680mm (W) x 520mm (D) x 420mm (H) |
| Weight | Approx. 65 kg |
