ICP-OES/AES
Our Inductively Coupled Plasma Optical Emission Spectrometers (ICP-OES / ICP-AES) represent the pinnacle of liquid elemental analysis. By heating a sample mist to 10,000K inside an argon plasma, it atomizes and excites almost the entire periodic table. Perfect for high-sensitivity trace testing in environmental water, acid digests, food, and pharmaceuticals.
Available Models & Configurations

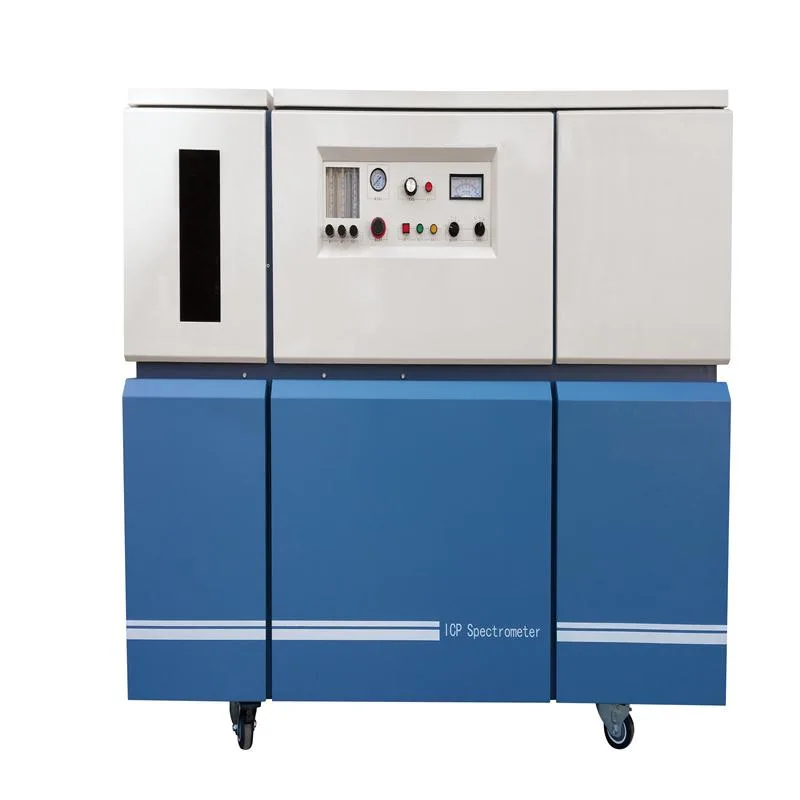

Model ICP-7000
Simultaneous dual-view ICP-OES system
The ICP-7000 is a dual-view (Axial + Radial) system. Axial view offers the lowest limits of detection for trace elements (ppb levels), while Radial view prevents detector saturation for major minerals (ppm/percentage levels).
Model ICP-AES 9000
High-throughput laboratory atomic emission spectrometer
Designed for contract testing laboratories processing hundreds of samples daily. Equipped with high-speed sample autosamplers, rapid-flush spray chambers, and intelligent background subtraction software.
Industry Applications
Environmental Water (Drinking, Waste, Sea) Testing
Fully qualified calibrations and specialized adapters available.
Agricultural Soil & Organic Fertilizers Trace Analysis
Fully qualified calibrations and specialized adapters available.
Food Safety, Toxins, and Heavy Metal Contaminants Monitoring
Fully qualified calibrations and specialized adapters available.
Petrochemical Fuel Oils & Lubricant Wear Metals
Fully qualified calibrations and specialized adapters available.
Pharmaceutical Impurities Analysis (USP <232>/<233> compliance)
Fully qualified calibrations and specialized adapters available.
Benefits & Advantages
Maximum Precision
Achieve sub-ppm detection limits ensuring top-tier quality control for critical metallurgical processes.
Rapid Results
Obtain full elemental composition within seconds, drastically reducing production downtime.
Robust Reliability
Engineered for 24/7 continuous operation in harsh industrial environments with minimal maintenance.
Cost Efficiency
Low gas consumption and optimized standby modes significantly lower the total cost of ownership.
Additional Resources
Downloads
Warranty & Support
2 Years Standard Industry Warranty
Certifications
Technical Specifications
Compare parameters for the selected model.
| Parameter | Specification Detail |
|---|---|
| Optical System | |
| Optical Structure | Echelle cross-dispersion optical system |
| Wavelength Range | 165nm - 900nm |
| Resolution | < 0.007nm at 200nm |
| Detector Type | Scientific megapixel Charge Injection Device (CID) |
| RF Generator | |
| Type | Solid State RF Generator (27.12 MHz) |
| Power Output | 700W - 1500W computer controlled |
| Sample Introduction | |
| Nebulizer | Glass concentric nebulizer with cyclonic spray chamber |
| Peristaltic Pump | 3-channel or 4-channel speed variable software-controlled pump |
| Physical & Utility | |
| Dimensions | 1150mm (L) x 780mm (W) x 750mm (H) |
| Weight | Approx. 165 kg |
| Argon Purge Gas | 99.999% purity argon required |
Request a Formal Quote & Configuration
Our application engineers are standing by to design a calibration package suitable for your materials. Fill out the form and receive pricing details within 24 hours.
24h Response
Get your quote within one business day
Expert Engineers
Custom packages designed by pros
Your Details
Please fill in the form below to receive your custom quote.
