Handheld XRF Analyzer
Our Handheld XRF (X-ray Fluorescence) Analyzers provide completely non-destructive elemental testing in the palm of your hand. Instantly check alloys, minerals, soil, jewelry, and RoHS compliance. Point-and-shoot operation yields results in under 3 seconds, backed by advanced Silicon Drift Detector (SDD) technology.
Available Models & Configurations

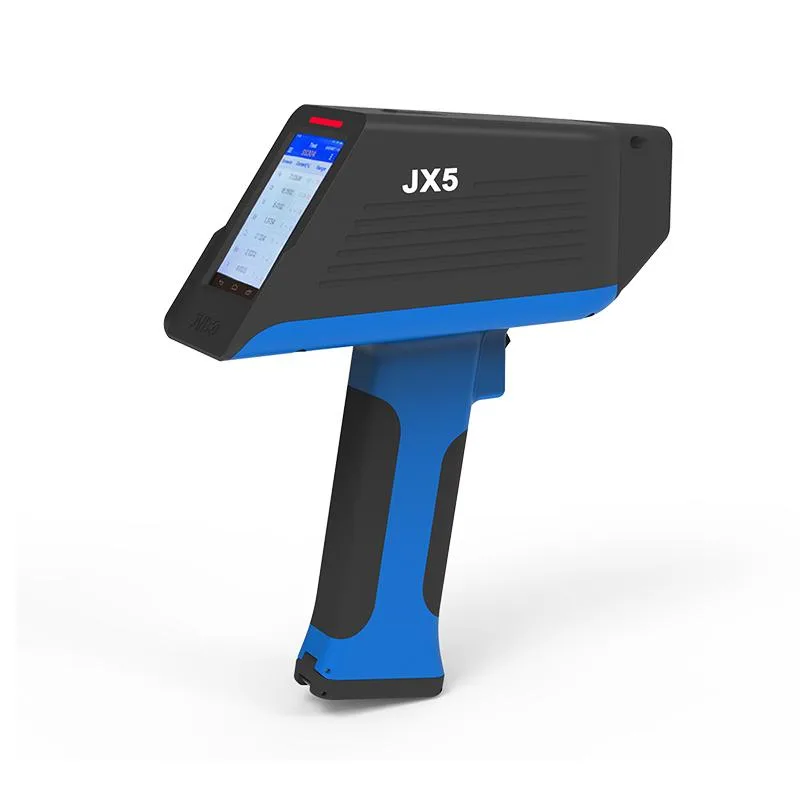

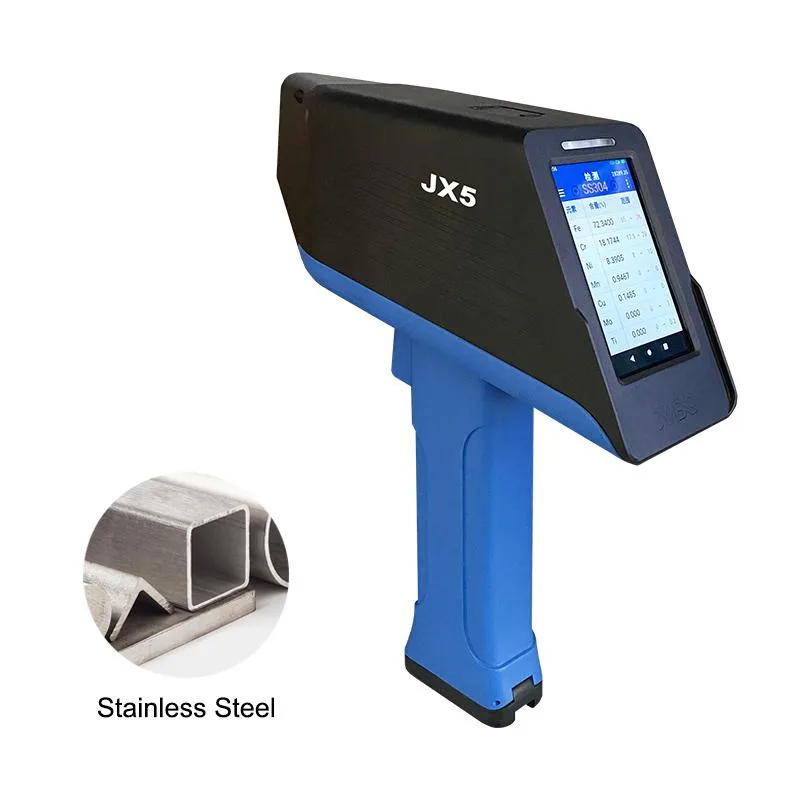

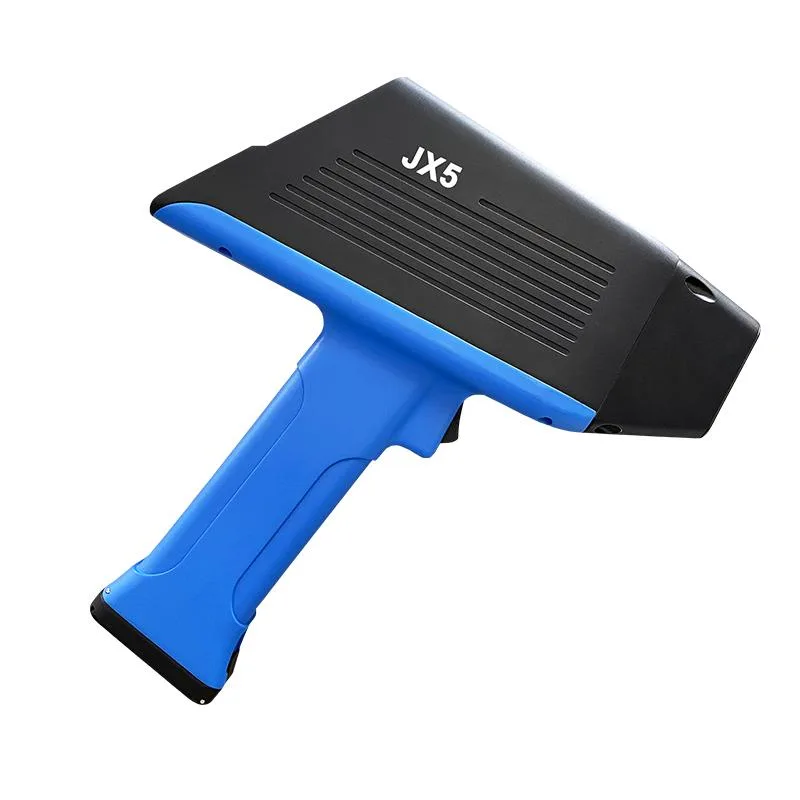

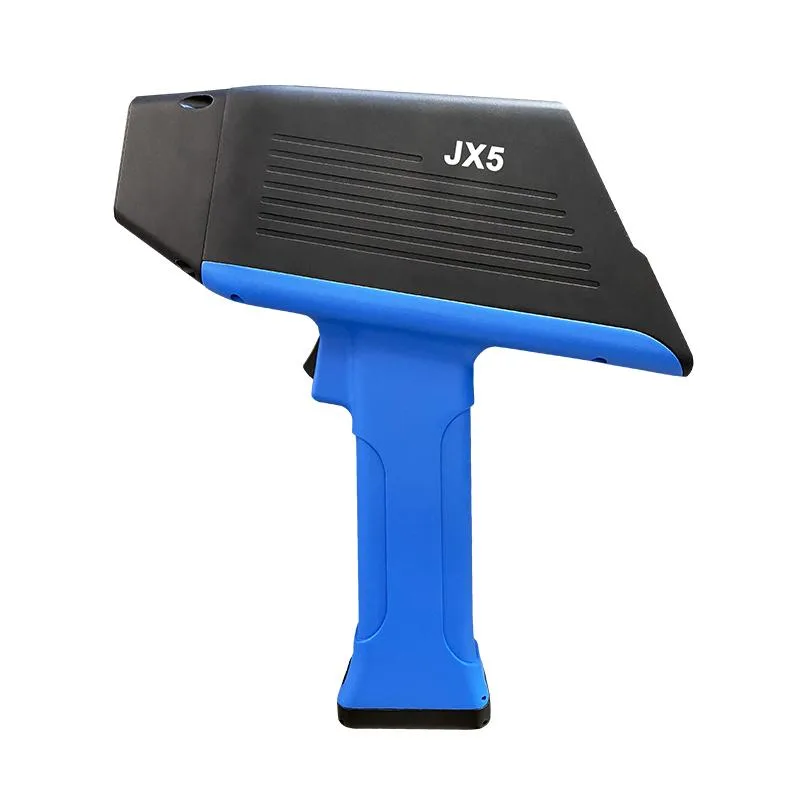

Model JX5
Affordable SDD-based handheld alloy tester
The JX5 is an optimized handheld XRF for fast sorting of common stainless steels, tool steels, and copper/bronze alloys. Standard software covers over 25 elemental channels.

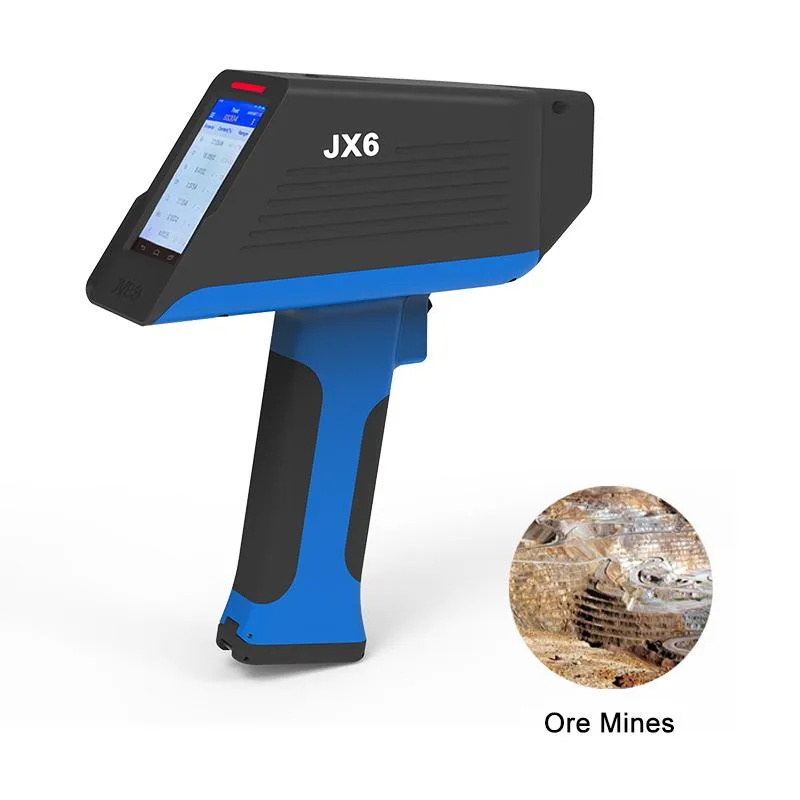

Model JX6
Premium SDD handheld for light elements & trace analysis
Our premium handheld XRF analyzer. The JX6 features a larger area SDD detector, enabling extreme sensitivity to light elements like Magnesium, Aluminum, Silicon, Phosphorus, and Sulfur without vacuum or helium purging.
Industry Applications
Scrap Alloy Sorting & Precious Metal Testing
Fully qualified calibrations and specialized adapters available.
Geological Exploration & Ore Quality Assessment
Fully qualified calibrations and specialized adapters available.
RoHS Compliance & Consumer Product Safety Screening
Fully qualified calibrations and specialized adapters available.
Soil Heavy Metal Environmental Monitoring
Fully qualified calibrations and specialized adapters available.
Art History & Archaeological Analysis
Fully qualified calibrations and specialized adapters available.
Benefits & Advantages
Maximum Precision
Achieve sub-ppm detection limits ensuring top-tier quality control for critical metallurgical processes.
Rapid Results
Obtain full elemental composition within seconds, drastically reducing production downtime.
Robust Reliability
Engineered for 24/7 continuous operation in harsh industrial environments with minimal maintenance.
Cost Efficiency
Low gas consumption and optimized standby modes significantly lower the total cost of ownership.
Additional Resources
Downloads
Warranty & Support
2 Years Standard Industry Warranty
Certifications
Technical Specifications
Compare parameters for the selected model.
| Parameter | Specification Detail |
|---|---|
| Excitation Source | |
| X-Ray Tube | Miniature 40kV silver (Ag) or tungsten (W) anode tube |
| Power | Max 4W, current up to 100 uA |
| Detector System | |
| Detector Type | High-resolution SDD (Silicon Drift Detector) |
| Energy Resolution | < 145 eV FWHM at Mn-Ka line |
| Element Analysis | |
| Analytical Range | Magnesium (Mg) to Uranium (U) |
| Measurement Time | 3 - 10 seconds for standard alloy identification |
| Physical & Safety | |
| Weight | 1.5 kg (with battery) |
| Display | 4.3 inch color transflective touchscreen |
| Radiation Safety | Automatic tube shutoff when no sample is detected |
